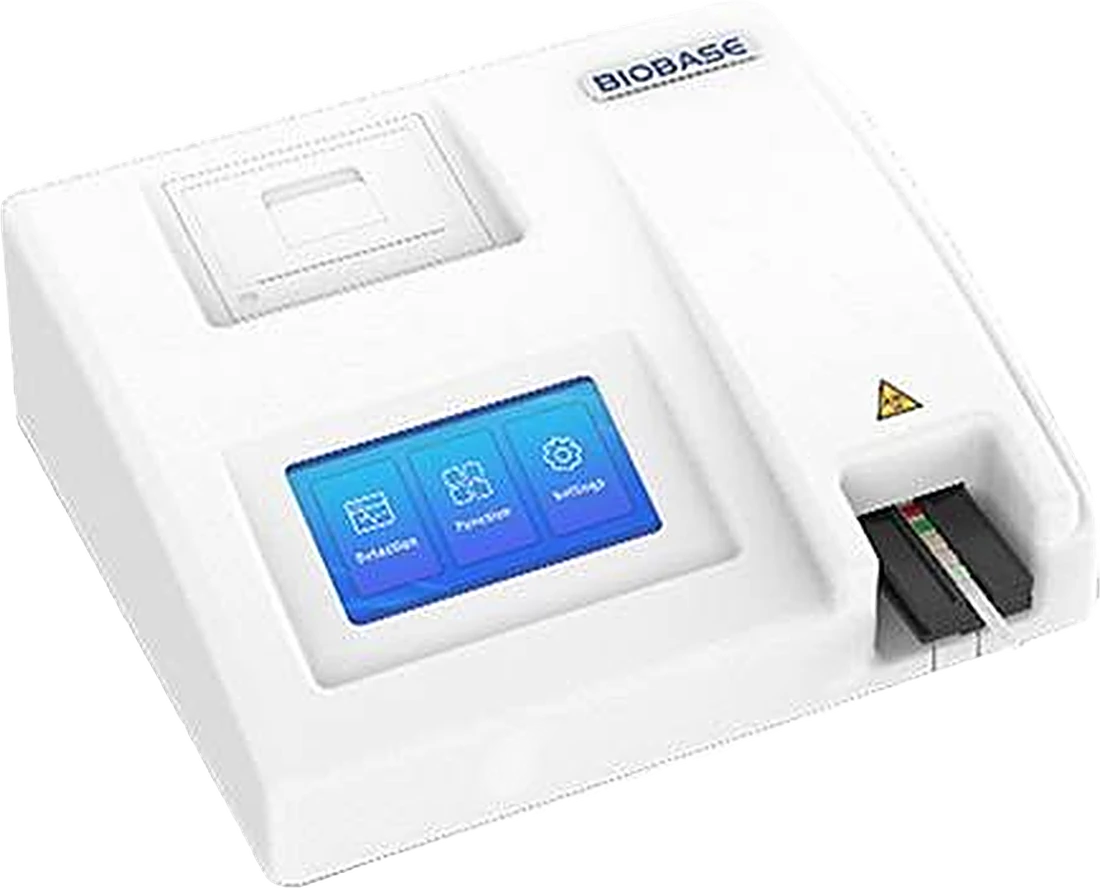

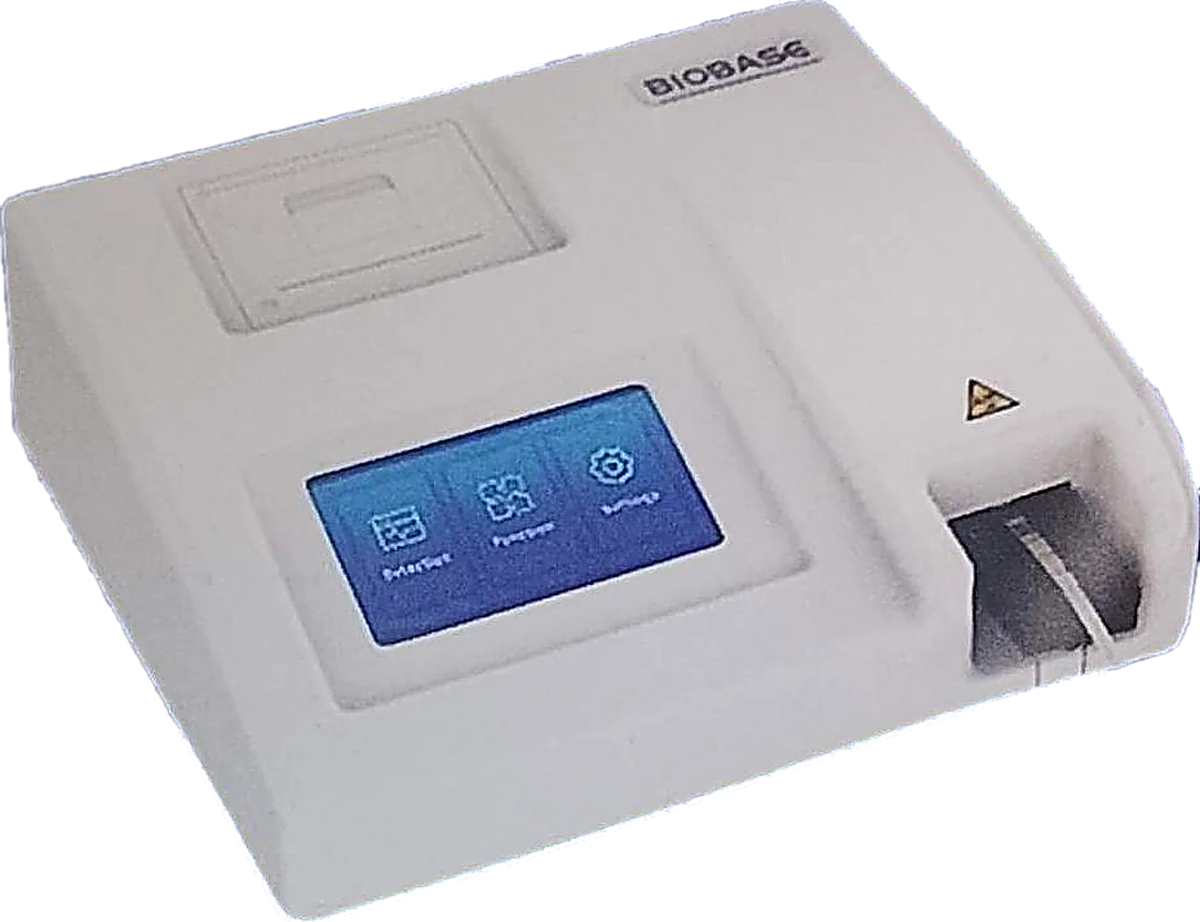

BIOBASE BH-NY01S Urine Analyzer

Hover to zoom, click for full screenTap to zoom

Laboratory Analyzers

Small, light urine analyzer with computer vision detection, up to 14 items and 700 tests per hour.

Brand: BIOBASE
Model: BH-NY01S
Price: Price on request

1 year warranty5 years service

Get a Quote Ask on WhatsApp

Or call our product specialist: +88 01717 883 543

Overview

Small, light urine analyzer with computer vision detection, up to 14 items and 700 tests per hour.

Key features

Small and light, easy to carry
Automatic detection of up to 14 items
Upgradeable system software
Fast enough for mass health checks
LCD touch screen

Supplied by Capstone International Ltd. with installation, operator training, 1 year warranty and 5 years service.

Specifications

Principle	Computer vision detection
Throughput	700 tests per hour
Screen	7 inch touch screen
Memory	More than 37,000 reports
Printer	Built in thermal
Interface	USB, RS232, LIS
Barcode scanner	Optional
Test strips	9, 10, 11 and 14 parameter
14 test strip	GLU, BIL, KET, SG, PH, BLO, PRO, URO, NIT, LEU, VC, CRE, Ca, MCA
Power supply	100 to 240V, 50/60Hz
External size	346 x 320 x 206 mm
Net weight	4 kg; gross weight: 8 kg

What it is used for

Urine routine examination with 9, 10, 11 or 14 parameter strips

Diabetes, kidney and urinary tract infection screening

Pregnancy and health check up camps

Up to 700 tests per hour for busy laboratories

How to use

1
Switch on the analyzer and select the strip type.
2
Dip the urine strip fully in a fresh urine sample for 1 to 2 seconds.
3
Remove excess urine on the side of the container.
4
Place the strip on the tray; the analyzer reads it automatically.
5
Check and print the result, or send it to the LIS.
6
Clean the strip tray at the end of the day.

Our engineers train your staff on site after installation. These steps are a short guide; always follow the operator manual supplied with the machine.
