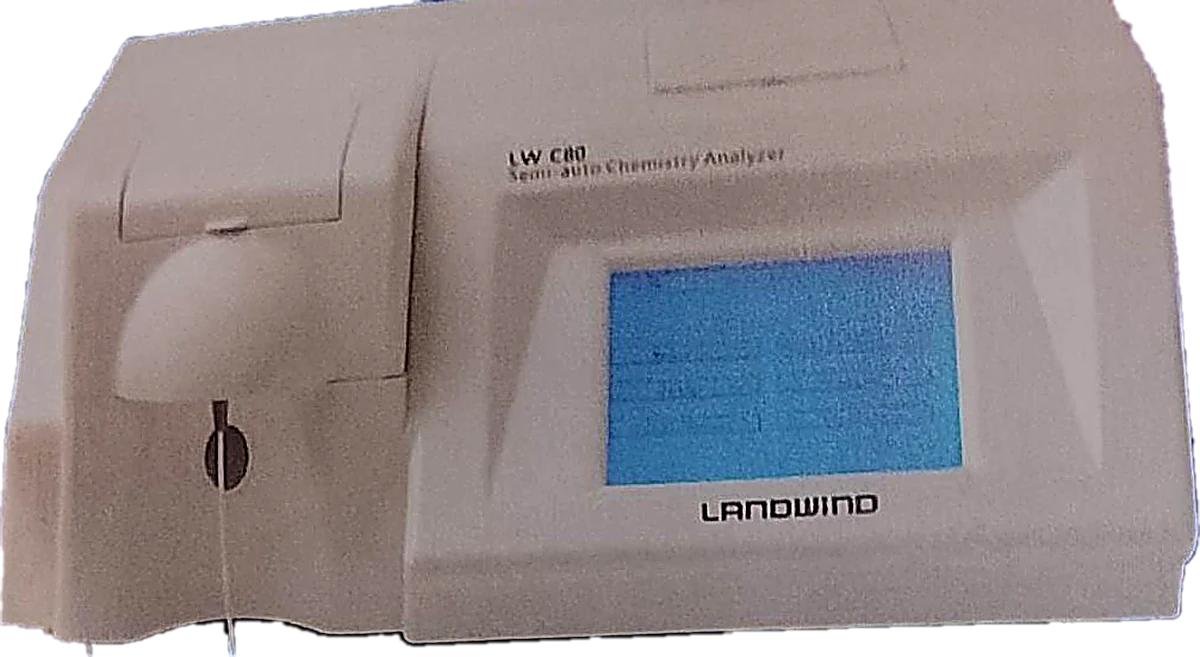

Landwind LW C80 Semi Auto Chemistry Analyzer

Hover to zoom, click for full screenTap to zoom

Semi automatic chemistry analyzer with an all in one optical system, Peltier temperature control and flow cell or cuvette testing.

Brand: Landwind Medical
Model: LW C80
Price: Price on request

1 year warranty5 years service

Get a Quote Ask on WhatsApp

Or call our product specialist: +88 01717 883 543

Overview

Semi automatic chemistry analyzer with an all in one optical system, Peltier temperature control and flow cell or cuvette testing.

Key features

End point, kinetics and fixed time absorbance
All in one optical system, anti interference
8 filters (340 to 750 nm) plus 1 free position
Reaction curve and QC graph print out
Peltier temperature control at 25, 30 and 37 C
Up to 112 test profiles
Memory for 3200 results
Large touch screen

Supplied by Capstone International Ltd. with installation, operator training, 1 year warranty and 5 years service.

Specifications

Flow cell	Stainless steel with quartz window, measuring volume 32 microlitre
Aspiration volume	200 to 2000 microlitre, programmable
Cuvette	Quartz, at least 250 microlitre
Optical path	10 mm; carryover up to 1.0%
Light source	Quartz halogen lamp 12V/20W
Printer	Built in thermal
Power	AC 220V or 110V, 50/60 Hz
Dimension	420 x 380 x 170 mm
Weight	8.5 kg

What it is used for

Routine biochemistry tests with end point, kinetic and fixed time methods

Up to 112 programmable test profiles

Clinics and laboratories that need flow cell or cuvette testing

QC graphs and reaction curve printing for record keeping

How to use

1
Switch on the analyzer and let the lamp and temperature settle (about 15 minutes).
2
Choose the test program, for example glucose or creatinine.
3
Run a blank with distilled water, then the standard or calibrator.
4
Mix the sample with the reagent and incubate as the reagent kit says.
5
Aspirate the reaction mixture or place the cuvette in the reading position.
6
Read and print the result. Run quality control at the start of each day.
7
Flush the flow cell with distilled water when you finish.

Our engineers train your staff on site after installation. These steps are a short guide; always follow the operator manual supplied with the machine.
