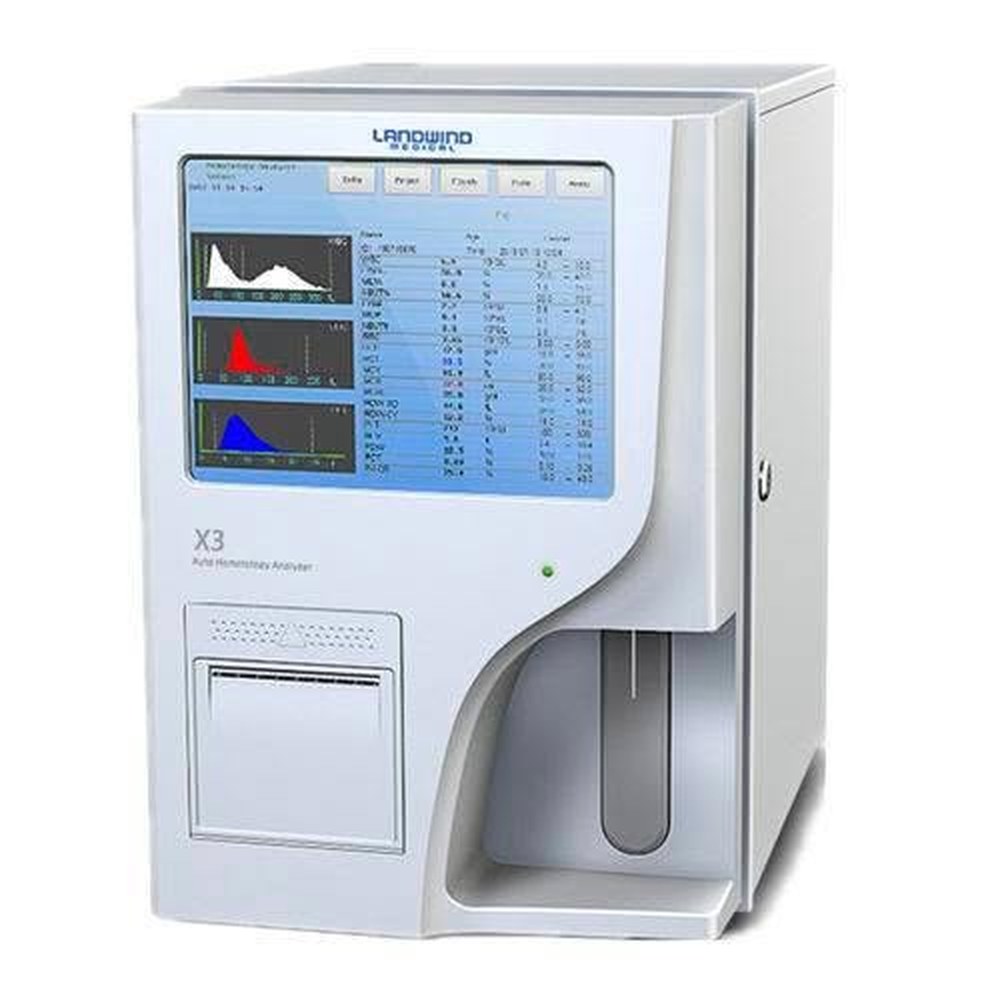

Landwind X3 Auto Hematology Analyzer

Hover to zoom, click for full screenTap to zoom

Three part differential analyzer with 20 parameters and 3 histograms from only 9.6 microlitre of blood, with a 10.4 inch color touch screen.

Brand: Landwind Medical
Model: X3
Price: Price on request

1 year warranty5 years service

Get a Quote Ask on WhatsApp

Or call our product specialist: +88 01717 883 543

Overview

Three part differential analyzer with 20 parameters and 3 histograms from only 9.6 microlitre of blood, with a 10.4 inch color touch screen.

Key features

WBC 3 part differential, 20 parameters, 3 histograms
60 samples per hour, two channel counting
Only 9.6 microlitre blood sample
High pressure burning and automatic block clearing
10.4 inch color touch screen, no extra computer needed
USB keyboard, mouse and RS232
Stores 40,000 samples
Manual and auto calibration

Supplied by Capstone International Ltd. with installation, operator training, 1 year warranty and 5 years service.

Specifications

Parameters	WBC, LYM#, MID#, GRAN#, LYM%, MID%, GRAN%, RBC, HGB, HCT, MCV, MCH, MCHC, PLT, PCT, RDW-CV, RDW-SD, MPV, PDW, P-LCR
Histograms	WBC, RBC, PLT
Throughput	60 samples per hour
Sample volume	9.6 microlitre
Display	10.4 inch color touch screen
Storage	40,000 samples
Reagent	Lyse 500 ml, diluent 20 L
Temperature	18 to 35 C
Power	AC 100 to 240V, 50/60Hz
Dimension	300 x 435 x 430 mm
Weight	18 kg

What it is used for

Complete blood count (CBC) with 3 part differential

Anaemia, infection and platelet tests

Child and elderly patients, as it needs only 9.6 microlitre of blood

Clinics and diagnostic centres with medium daily workload

How to use

1
Collect blood in an EDTA tube and mix it gently.
2
Switch on the analyzer and let it finish the start up cleaning and background check.
3
Run the daily quality control sample and check it passes.
4
Enter the patient ID and choose the mode (venous, capillary or prediluted).
5
Place the sample under the probe and press the aspirate key.
6
Read the results and histograms on the screen, then print or send them to the LIS.
7
At the end of the day run the shutdown cleaning.

Our engineers train your staff on site after installation. These steps are a short guide; always follow the operator manual supplied with the machine.
